Exposed Automatic Sensor Urinal Flush Valve
Basic Info.
Model NO.: HY-328 D
Brand Name: HUIYI or OEM
Instal Type: Wall Mounted
Valve Core Material: Brass
Waterway Diameter: G 1/2'' (DN 15)
Usage:Toilet or Public Toilet
Style:Fashion
Function: Inductive
Cartridge: Solenoid Valve
|
Materials |
Cu59-1/Leadfree alternative Brass |
|
Treatment |
Satin Finish |
|
Components |

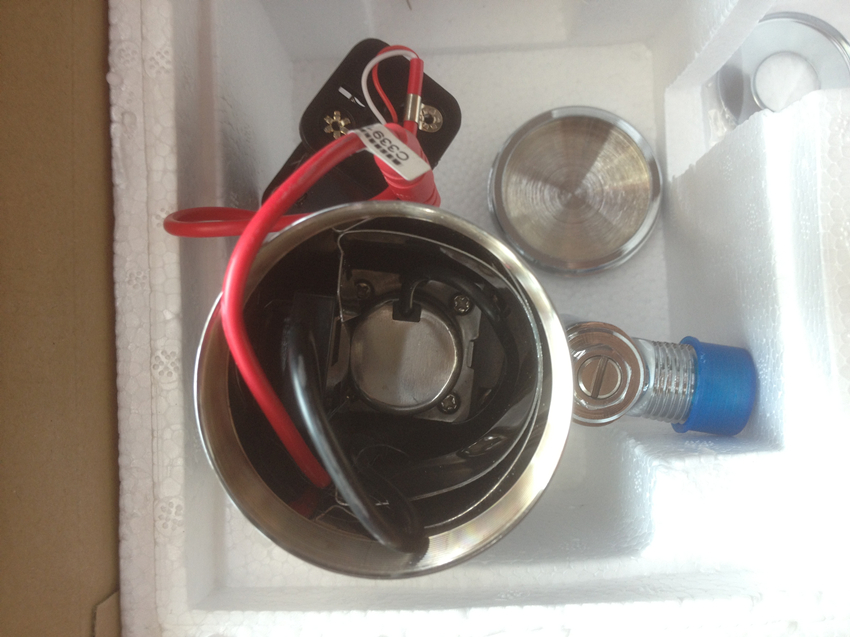

SS board, sensor, solenoid, batteries/converter, relevant accessories |
|
Sensing Distance |
68-70 cm (adjustable) |
|
Power supply |
110-220VAC 50/60Hz or 6V(4 AA alkaline battery) |
|
Water Temperature |
0.1-60 degree |
|
Environment Temperature |
0.1-45 degree |
|
Water Pressure |
0.3-0.7MPa |
|
Switching Time |
<0.7s |
|
Operation Consumption |
<60uA |
|
Overall Power Consumption |
<0.5W |
|
Water supply pipe size |
DN15 (G1/2") |
|
Low Battery Indicator |
Red Led flash |
|
CPU Warranty |
2 years |
Features:
1.Water-saving : Water flushes automatically when be induced, saving water dramatically
2.Intelligent: Controled by SCM,low consumption
3.Hygienic: without touching avoid cross inflection of bacteria
4.Time adjustable: Flush time can be adjusted as your need.
5.Installation: It is suitable for those places having various type of users because of its elegant shape and extremely-strong structure.
