Product Details
Model NO.: HY-269D/A
Brand Name: HUIYI or OEM
Instal Type: Wall Mounted
Valve Core Material: Brass
Water Supply: Only for cold water
Waterway Diameter: G 1/2'' (DN 15)
Structure:Single Hole
Usage:
Style:Fashion
Function: Inductive

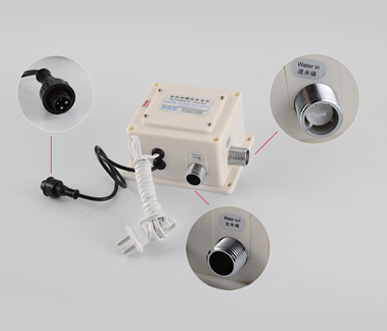

Cartridge: Solenoid Valve
|
Materials |
Cu59-1/Leadfree alternative Brass and ABS |
|
Treatment |
Chrome Finish |
|
Components |
Faucet, sensor, solenoid, batteries/converter, relevant accessories |
|
Sensing Distance |
28 |
|
Power supply |
110-220VAC 50/60Hz or 6V (4 AA alkaline battery) |
|
Water Temperature |
0.1-60 degree |
|
Environment Temperature |
0.1-45 degree |
|
Water Pressure |
0.05-0.7Bar |
|
Switching Time |
<0.7s |
|
Operation Consumption |
<60uA |
|
Overall Power Consumption |
<0.5W |
|
Life Cycle |
500,000 times on/off |
|
Water supply pipe size |
DN15 (G1/2") |
|
Low |
Red Led flash |
|
CPU Warranty |
2 years |
Additional Info.
Packing:White Cloth Bag+Bublle Bag+Foam+Box+Kraft CTN
Standard: CE ISO90001
Origin:
HS Code: 8481809000
Production Capacity:10000PCS/Month
Features:
· Touchless operation, Water saving up to 70%, Prevents transmission of pathogens through touching faucet and fixtures.
· The outlet pipe can be revolved freely, water flow when gets the sensor, water stop when gets the sensor again.
· Controlled by SCM, water stops automatically after water flow exceeds 1 minute, eliminates the problem with an object standing in front of the sensor.
· Detecting range adjustable free of touching.
· Water proof
· Bi-Stable Solenoid valve with anti-block system, Safe, reliable and low energy consumption, powered by 4 AA that can lasts for about 2 years.
· DC and AC all available.
· Water-proof, anti-converse cable to provide safe connection
· All parts in contact with water drinking-water approved
Trade Terms
1. Payment: 30% T/T in advance, 70% balance before delievery (Westem union / Moneygram are welcomed)
2. Production lead time is usually in 15 days, hot sales season need to re-confirm.
3. Samples can be delivered within 1 week.
4. Shipping freight are quoted under your requests
5. Shipping port is
6. Discounts are offered based on order quantity
