Automatic Sensor Shower

Automatic Sensor Shower HY-618D

Item No.:HY-618D

Brand:HUIYI or OEM

MOQ:12 PCS

Delivery Time:3-15 days

Specification:DC:6V

Supply Ability:10000 PCS/Month

Product Detail

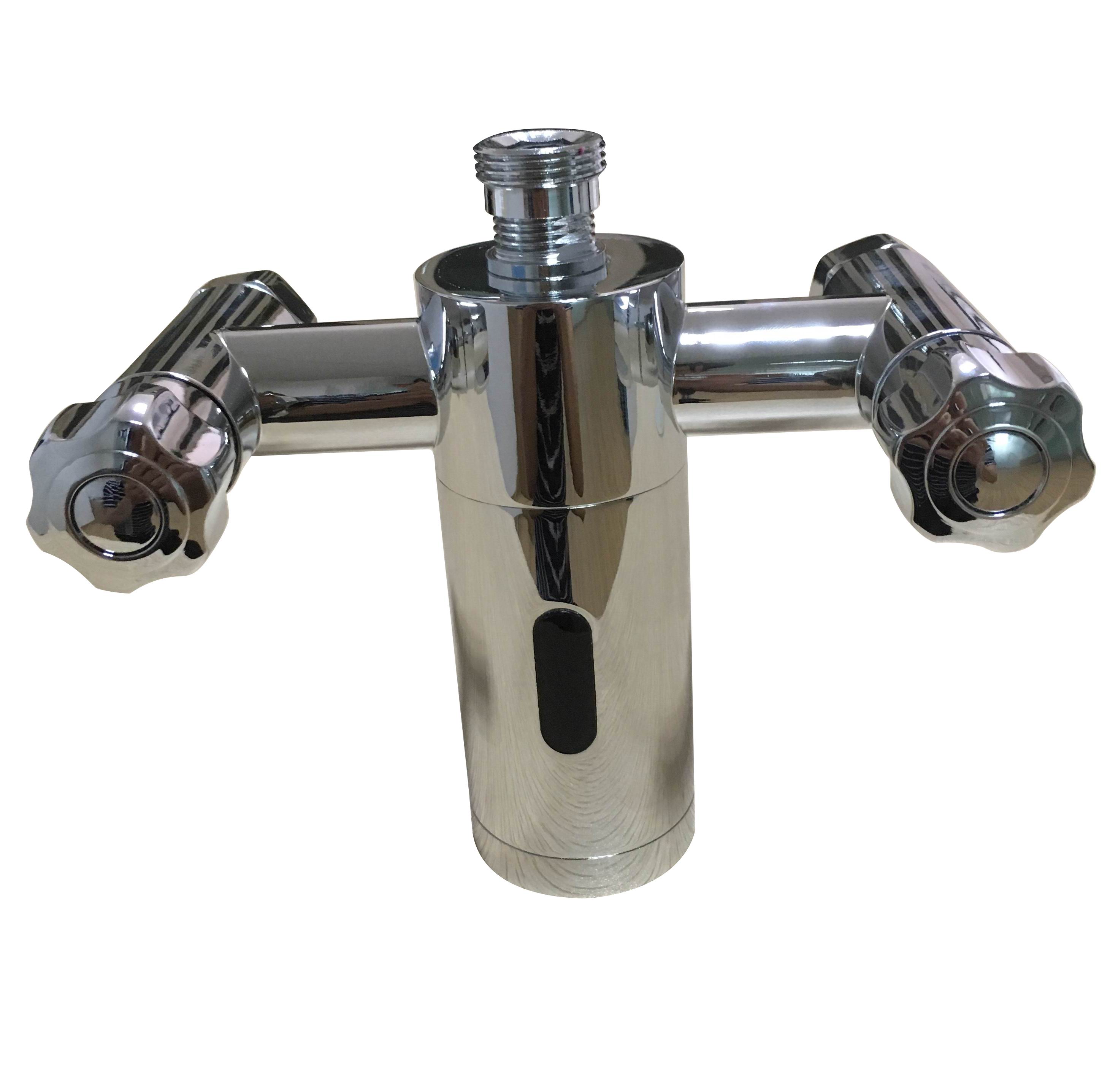

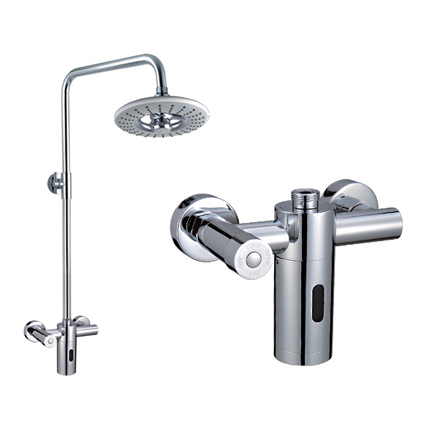

Automatic  Intellegent Shower Faucet Touch less Hand Free Sensor Shower

Product Details

Model NO.: HY-618D
Brand Name: HUIYI or OEM

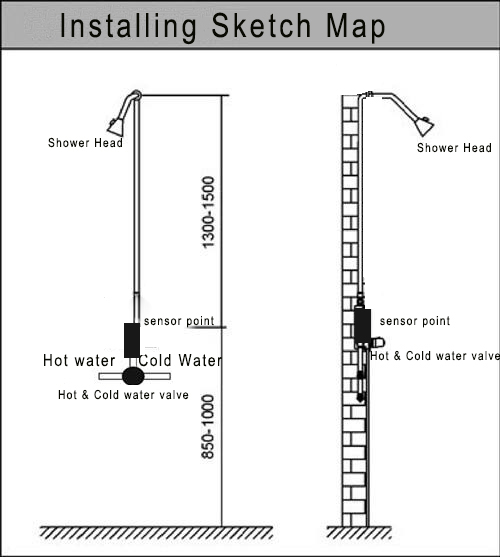

Instal Type: Wall Mounted
Valve Core Material: Brass

Waterway Diameter: G 1/2'' (DN 15)

 Parts: without shower head and brass tube

Usage: Bathroom

Style:Fashion

Function: Inductive , temperature can be adjusted manually

 Cartridge: Solenoid Valve

Materials

Cu59-1/Leadfree alternative Brass

Treatment

Chrome Finish

Components

Faucet, sensor, solenoid, batteries/converter, relevant accessories

Sensing Distance

28-32cm (adjustable)

Power supply

6V (4 AA alkaline battery)

Water Temperature

0.1-60 degree

Environment Temperature

0.1-45 degree

Water Pressure

0.05-0.7Bar

Switching Time

<0.7s

Operation Consumption

<60uA

Overall Power Consumption

<0.5W

Life Cycle

500,000 times on/off

Water supply pipe size

DN15 (G1/2")

Low Battery Indicator

Red Led flash

CPU Warranty

2 years

Additional Info.

Packing:White Cloth Bag+Bublle Bag+Foam+Box+Kraft CTN

Standard: CE ISO90001

Origin: Quanzhou, China

HS Code: 848180900

Production Capacity:10000PCS/Month

Features:

·         Touchless operation, Water saving up to 70%, Prevents transmission of pathogens through touching faucet and fixtures.

·         The sensor window is in the box

·         Controlled by SCM, water stops automatically after water flow exceeds 1 minute, eliminates the problem with an object standing in front of the sensor.

·         Detecting range adjustable free of touching.

·         Water proof Battery case outside the faucet for convenient replacement.

·          Bi-Stable Solenoid valve with anti-block system, Safe, reliable and low energy consumption, powered by 4 AA that can lasts for about 2 years.

·      Only DC power supply available

·         Water-proof, anti-converse cable to provide safe connection

·         All parts in contact with water drinking-water approved


Trade Terms
1. Payment: 30% T/T in advance, 70% balance before delievery (Westem union                               / Moneygram   are welcomed)
2. Production lead time is usually in 15 days, hot sales season need to re-confirm.
3. Samples can be delivered within 1 week.
4. Shipping freight are quoted under your requests
5. Shipping port is XIAMEN seaport, other seaport available.
6. Discounts are offered based on order quantity
